Description
Temperature, Humidity, Shock, Location

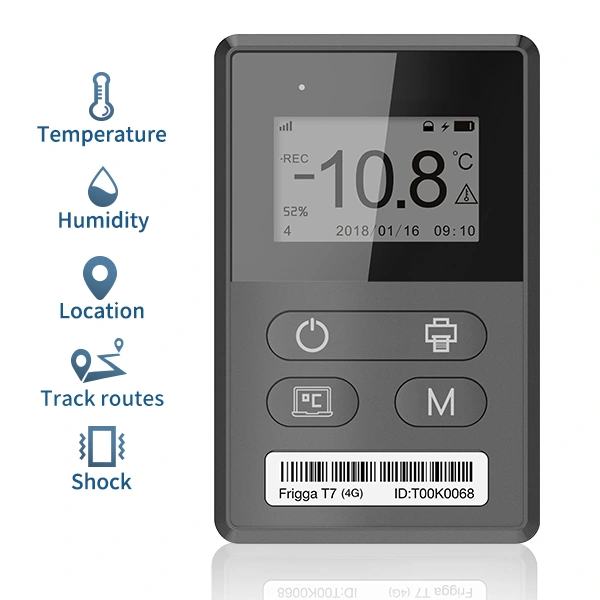

New generation of global real-time temperature monitor
Data is stored in the cloud for traceability; USB port for backup PDF data download
Full cold chain visibility(Location, Temperature, Humidity, Shock, Route) via Frigga cloud
Improve transportation efficiency and reduce products loss with real-time monitoring
24/7 data control & analysis, manage quality and control of your products in-transit. Real time alert via SMS, Email and APP
Support shock detection, protect the safety of your goods effectively
SPECIFICATIONS
| Configure | Parameters |
|---|---|
| Usage Type | Multi use (Reusable) + Rechargeable |
| Monitor Information | Temperature, Humidity, Shock, Location, Track routes |
| Temperature Sensor | Internal Texas Instruments (TI) Brand Digital Sensor |
| Temperature Measurement Range | -30°C ~ 70°C (-22°F ~ 158°F) |
| Temperature Accuracy Range | ±0.5°C (-20°C ~ +40°C); ±1°C for other range |
| Humidity Measurement Range | 5%~95%RH |
| Humidity Accuracy Range | ±3% (20%~80%RH); ±5% for other range |
| Resolution (Temperature/Humidity) | 0.1°C / 1%RH |
| Memory Capacity | Max 50,000 readings |
| Location Type | LBS Base Station Positioning |
| Cellular | Global LTE 4G/5G, fallback 2G network |
| SIM Card | Internal Embedded (Global Data Roaming) |
| Shelf Time | 12 Months |
| Use Time | 120 days use time for 1 charge with 120 reporting interval |
| Data Logging Interval | 10 Min (1/2/5/10 Min settable via platform) |
| Data Reporting Interval | 10 Min (10/20/30/60/120 Min settable via platform) |
| Environmental Rating | IP64 |
| Cold Chain PDF Report | Get PDF report via USB2.0 / Frigga cloud platform / Frigga Track (Mobile App) |
| Dimensions/Weight | 103 x 65.6 x 18.5 mm / 160 grams |
| Certifications | FCC, CE, RTCA/DO-160G, UN38.3, ROHS, WEEE |
| Storage Temperature Range | -10°C ~ +55°C |
